Rare Triple Transit! There’ll be 3 Moon Shadows on Jupiter on January 24th, 2015
by David Dickinson
on January 20, 2015
The triple shadow transit of October 12th, 2013. Credit & copyright: John Rozakis.
Play the skywatching game long enough, and anything can happen.
Well, nearly anything. One of the more unique clockwork events in our
solar system occurs this weekend, when shadows cast by three of
Jupiter’s moons can be seen transiting its lofty cloud tops…
simultaneously.
How rare is such an event? Well,
Jean Meeus calculates 31 triple events involving moons or their shadows occurring over the 60 year span from 1981 to 2040.
But not all are as favorably placed as this weekend’s event. First,
Jupiter heads towards opposition just next month. And of the
aforementioned 31 events, only 9 are triple shadow transits. Miss this
weekend’s event, and you’ll have to wait until March 20
th, 2032 for the next triple shadow transit to occur.
Hubble spies a triple shadow transit on March 28th, 2004 .
Credit: NASA/JPL/Arizona.
Of course, double shadow transits are much more common throughout the
year, and we included some of the best for North America and Europe in
2015 in our
2015 roundup.
The key times when all three shadows can be seen crossing Jupiter’s 45” wide disk are on the morning of Saturday, January 24
th starting
at 6:26 Universal Time (UT) as Europa’s shadow ingresses into view,
until 6:54 UT when Io’s shadow egresses out of sight. This converts to
1:26 AM EST to 1:54 AM EST. The span of ‘
triplicate shadows’
only covers a period of slightly less than 30 minutes, but the action
always unfolds fast in the Jovian system with the planet’s 10 hour
rotation period.

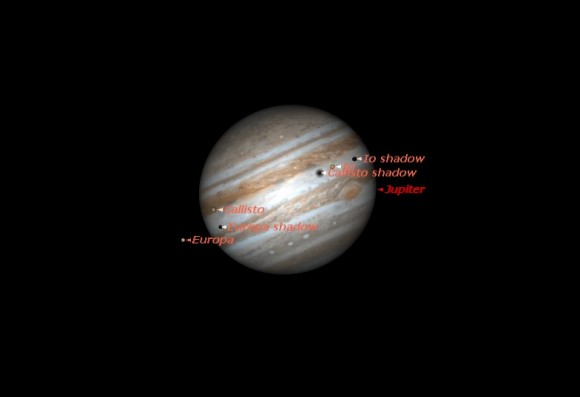

The view on January 24th at 6:41 UT/1:41 AM EST.
Credit: Created using Starry Night Education software.
Unfortunately, the Great Red Spot is predicted to be just out of view
when the triple transit occurs, as it crosses Jupiter’s central
meridian over three hours later at 10:28 UT.
The moons involved in this weekend’s event are Io, Callisto and Europa. Now, I know what you’re thinking. Seeing
three shadows at once is pretty neat, but can you ever see
four?
The short answer is no, and the reason has to do with orbital resonance.
The orbital resonance of the three innermost Galilean moons. (
Credit: Wikimedia Commons).
The three innermost
Galilean moons
of Jupiter (Io, Europa and Ganymede) are locked in a 4:2:1 resonance.
Unfortunately, this resonance assures that you’ll always see two of the
innermost three crossing the disk of Jupiter, but never all three at
once. Either Europa or Ganymede is nearly always the “odd moon out.”
To complete a ‘triple play,’ outermost Callisto must enter the
picture. Trouble is, Callisto is the only Galilean moon that can ‘miss’
Jupiter’s disk from our line of sight. We’re lucky to be in an ongoing
season of Callisto transits in 2015, a period that ends in July 2016.
Perhaps, on some far off day, a space tourism agency will offer tours
to that imaginary vantage point on the surface of one of Jupiter’s
moons such as Callisto to watch a triple transit occur from close up.
Sign me up!
Jupiter currently rises in late January around 5:30 PM local, and
sets after sunrise. It is also well placed for northern hemisphere
observers in Leo at a declination 16 degrees north . This weekend’s
event favors Europe towards local sunrise and ‘Jupiter-set,’ and finds
the gas giant world well-placed high in the sky for all of North America
in the early morning hours of the 24
th.

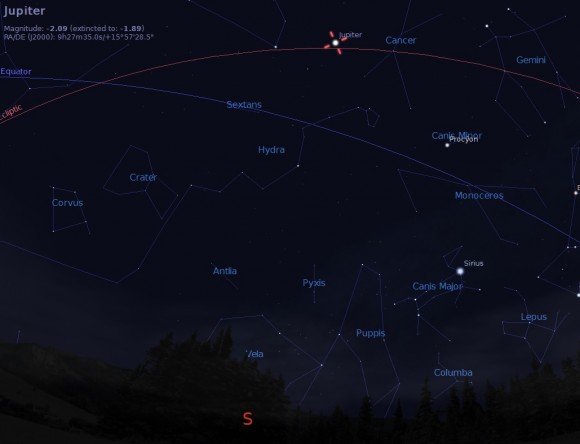

Jupiter rides high to the south at 1:45 AM EST for the US East Coast. Credit:
Stellarium.
Look closely. Do the shadows of the individual moons appear different
to you at the eyepiece? It’s interesting to note during a multiple
transit that not all Jovian moon shadows are ‘created equal’. Distant
Callisto casts a shadow that’s broad, with a ragged gray and diffuse
rim, while the shadow of innermost Io appears as an inky black
punch-hole dot. If you didn’t know better, you’d think those alien
monoliths were busy consuming Jupiter in a scene straight out of the
movie
2010. Try sketching multiple shadow transits and you’ll soon find that you can actually identify
which moon is casting a shadow just from its appearance alone.

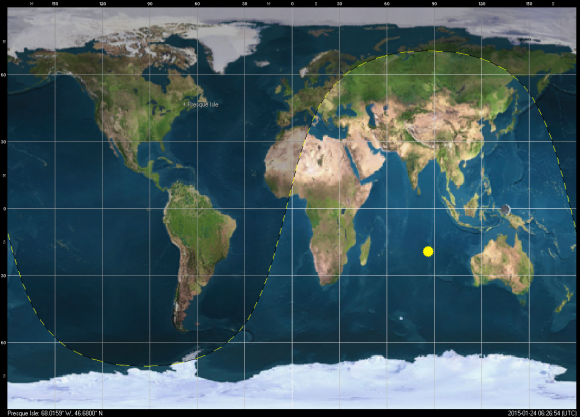

The orientation of Earth’s nighttime shadow at mid-triple transit.
Credit: Created using Orbitron.
Other mysteries of the Galilean moons persist as well. Why did late 19
th
century observers describe them as egg-shaped? Can visual observers
tease out such elusive phenomena as eruptions on Io by measuring its
anomalous brightening? I still think it’s amazing that webcam imagers
can now actually pry out surface detail from the Galilean moons!
The 2004 triple shadow transit. Photo by author.
Observing and imaging a shadow transit is easy using a
homemade planetary webcam.
We’d love to see someone produce a high quality animation of the
upcoming triple shadow transit. I know that such high tech processing
abilities — to include field de-rotation and convolution mapping of the
Jovian sphere — are indeed out there… its breathtaking to imagine just
how quickly the fledgling field of ad hoc planetary webcam imaging has
changed in just 10 years.
The moons and Jupiter itself also cast shadows off to one side of the
planet or the other depending on our current vantage point. We call the
point when Jupiter sits 90 degrees east or west of the Sun
quadrature, and the point when it rises and sets opposite to the Sun is known as
opposition. Opposition for Jupiter is coming right up for 2015 on February 6
th. During opposition, Jupiter and its moons cast their respective shadows nearly straight back.
Did you know:
the speed of light was first deduced
by Danish astronomer Ole Rømer in 1671 using the discrepancy he noted
while predicting phenomena of the Galilean moons at quadrature versus
opposition. There were also early ideas to use the positions of the
Galilean moons to tell time at sea, but it turned out to be hard enough
to see the moons and their shadows with a small telescope based on land,
let alone from the pitching deck of a ship in the middle of the ocean.
And speaking of mutual events, we’re still in the midst of a season
where it’s possible to see the moons of Jupiter eclipse and occult one
another. Check out the
USNO’s table for a complete list of events, coming to a sky near you.
And let’s not forget that
NASA’s Juno spacecraft
is headed towards Jupiter as well., Juno is set to enter a wide
swooping orbit around the largest planet in the solar system in July
2016.
Now is a great time to get out and explore Jove… don’t miss this weekend’s triple shadow transit!
